3/4" Uniballgelenk rechtsgewinde (HD)
£12.00 GBP
Zu Produktinformationen springen
Hochbelastbares 2-teiliges Gelenkkopf-Lager (Heim Joint) 3/4"-16, rechtsgewinde, inklusive Kontermutter.
Diese Gelenkköpfe bestehen aus spritzgegossenem, PTFE-verstärktem Nylon und eignen sich hervorragend für extreme Offroad-Anwendungen wie Hydro-Lenkungen und Panhardstäbe.
| Artikelnummer | XMR12 |
|---|---|
| Gewindegröße | 3/4"–16 UNF |
| Gewinderichtung | Right hand (RH) |
| Bauweise | 2-piece |
| Lagerschicht | Injection-moulded PTFE-reinforced nylon |
| Lieferumfang | Matching jam nut (locknut) |

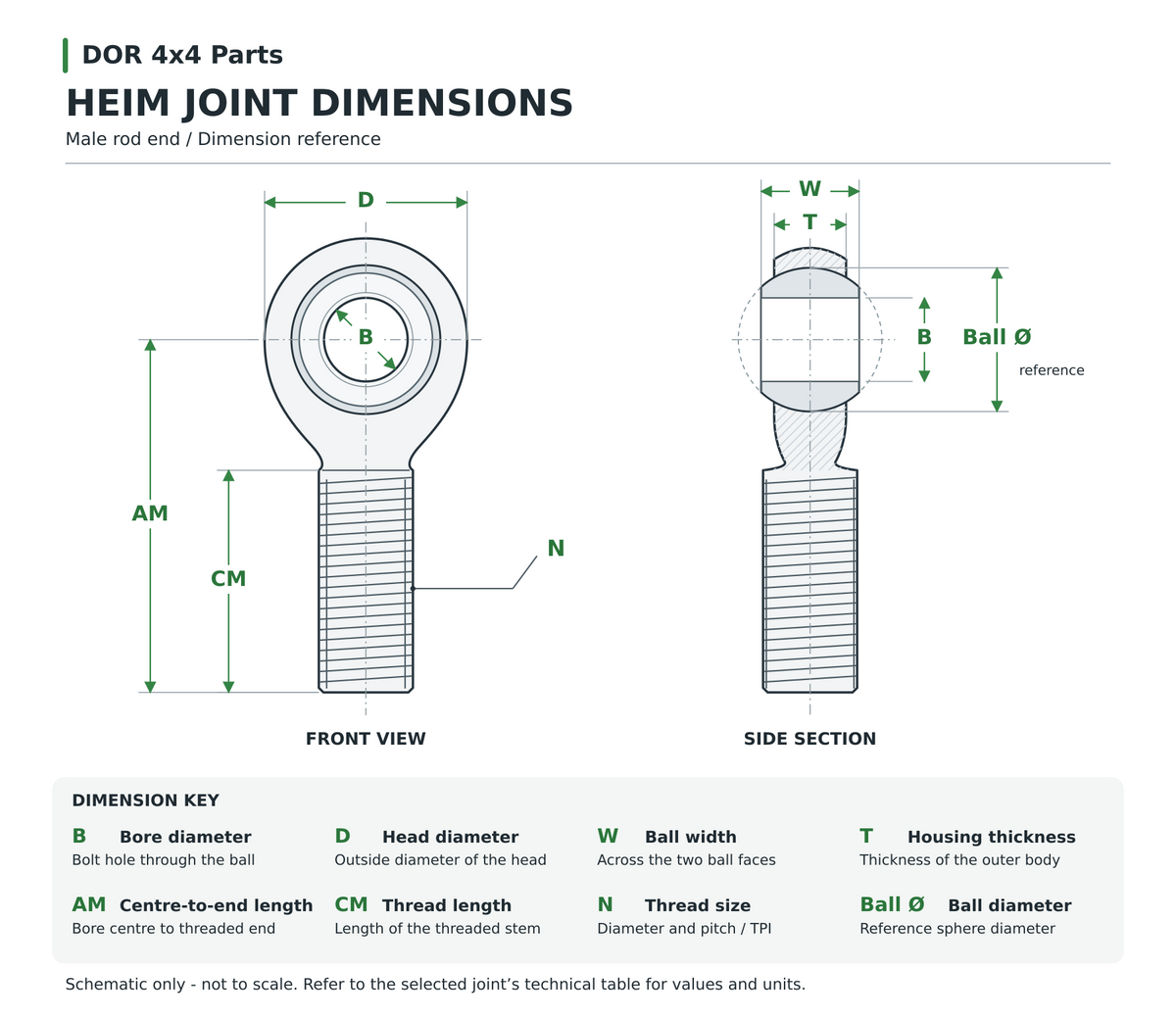

| Bohrungsdurchmesser (B) | 0.75" (approx. 19.05 mm) |
| Kopfaußendurchmesser (D) | 1.75" (approx. 44.45 mm) |
| Kugelbreite / Einbaubreite ohne Distanzstücke (W) | 0.875" (approx. 22.23 mm) |
| Gehäusebreite (T) | 0.687" (approx. 17.45 mm) |
| Bohrungsmitte bis Schaftende (AM) | 2.875" (approx. 73.03 mm) |
| Gewindelänge (CM) | 1.75" (approx. 44.45 mm) |
| Katalog-Schwenkwinkel (α) | 14° (clevis mounted) |
| Statische Radiallast laut Katalog | 28,081 lbf (approx. 124.9 kN) |
| Ungefähres Gelenkgewicht | 0.57 lb (approx. 259 g) |
| Gehäusematerial | Heat-treated 4130 chromoly steel |
| Gehäuseoberfläche | Hard chrome plated |
| Kugelmaterial | Heat-treated 52100 bearing steel |
| Kugeloberfläche | Precision ground, hard chrome plated |
| Schmierung | Self-lubricating |
Sizing: Thread size refers to the threaded shank; check the joint bore and spacer requirements separately. RH and LH describe the thread direction.
Dimensions shown are nominal catalogue values. Bore and mounting width are for the bare joint; high misalignment spacers alter the bolt size, mounting width and available articulation. The static radial load is a manufacturer catalogue rating, not a working load limit.
