1-1/4" Heim Joint RH (HD)
£32.00 GBP
Skip to product information

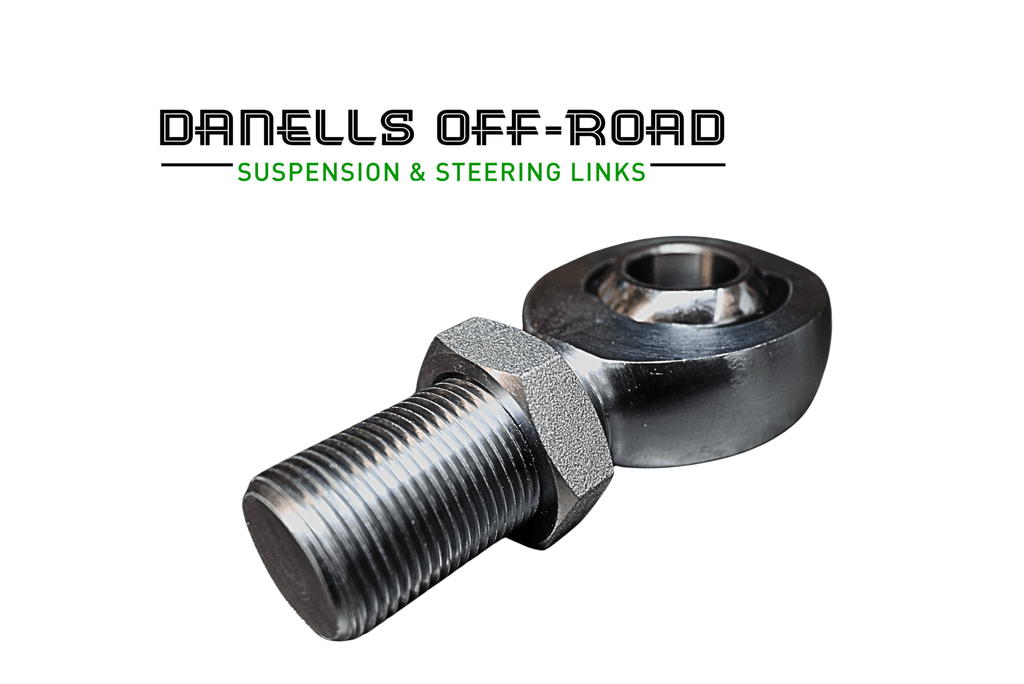

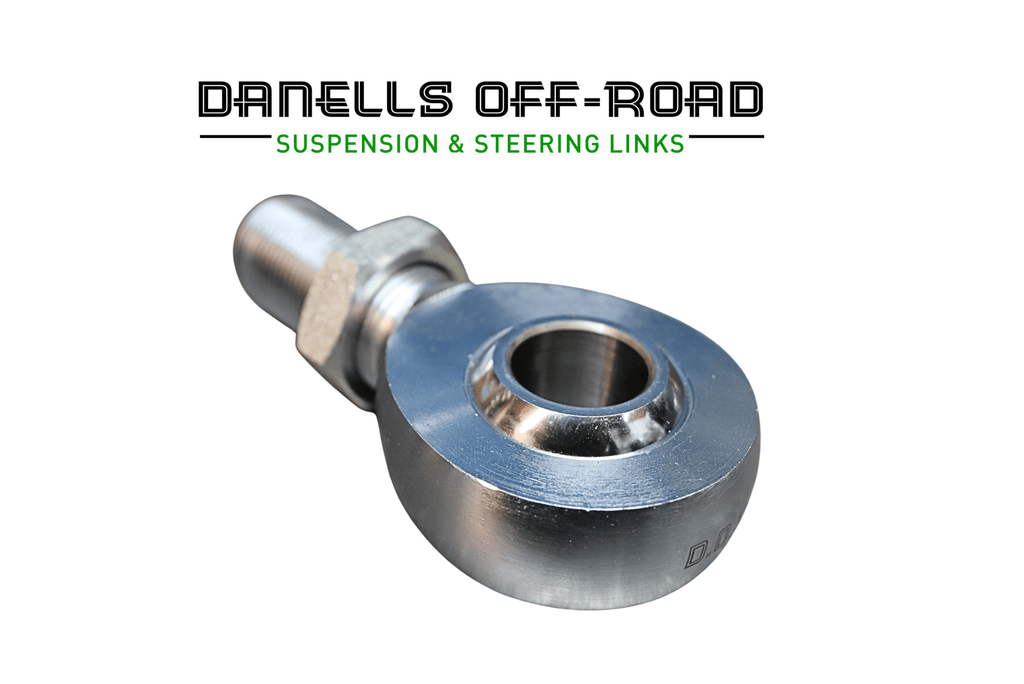

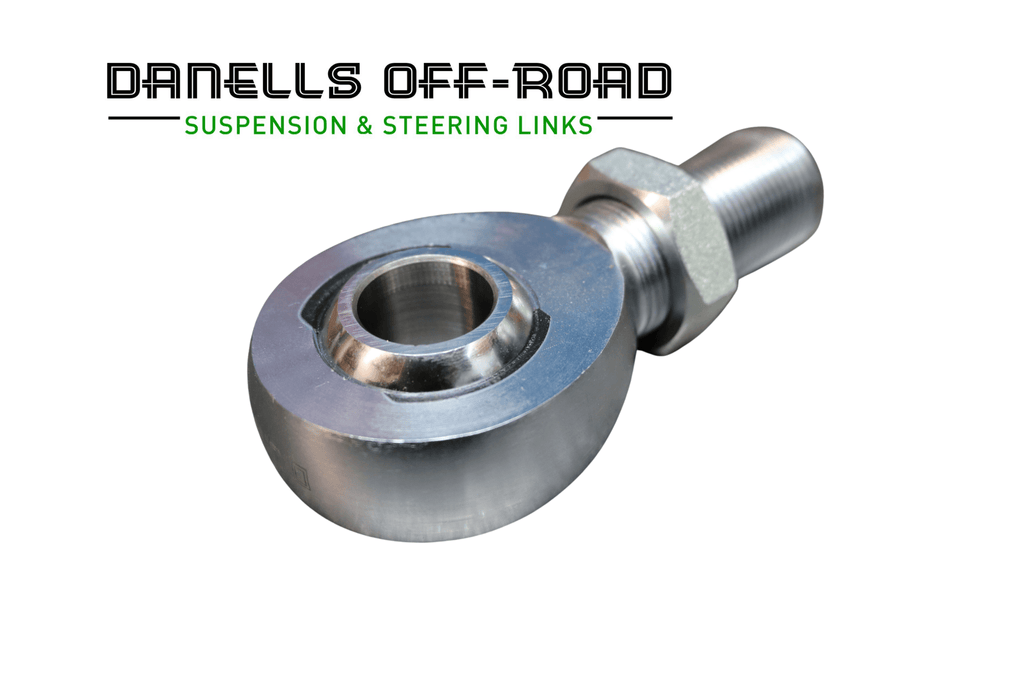

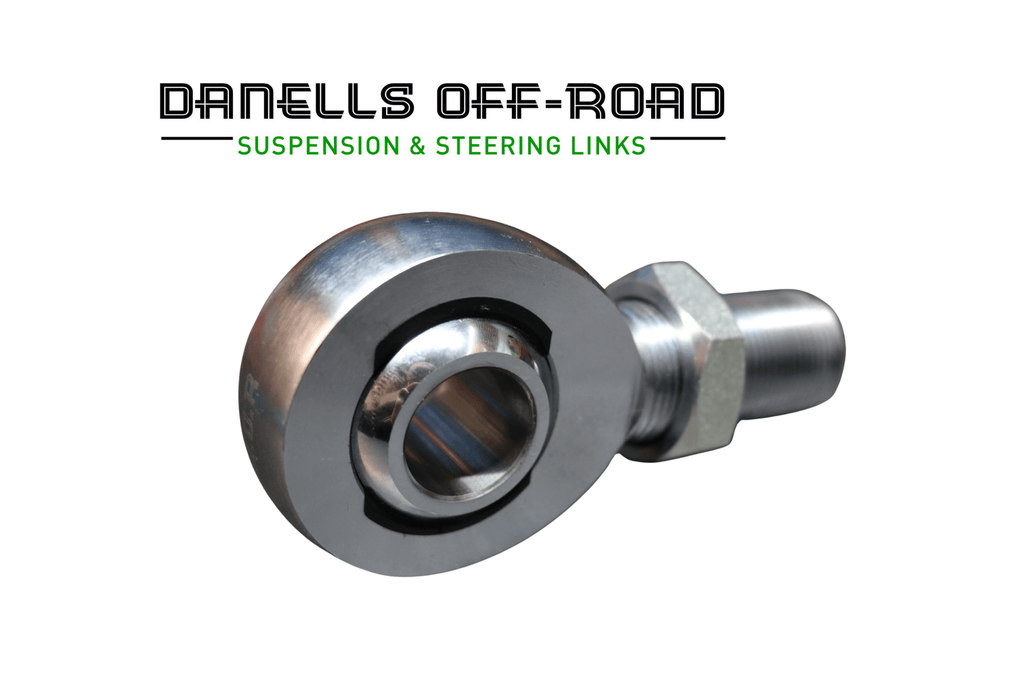

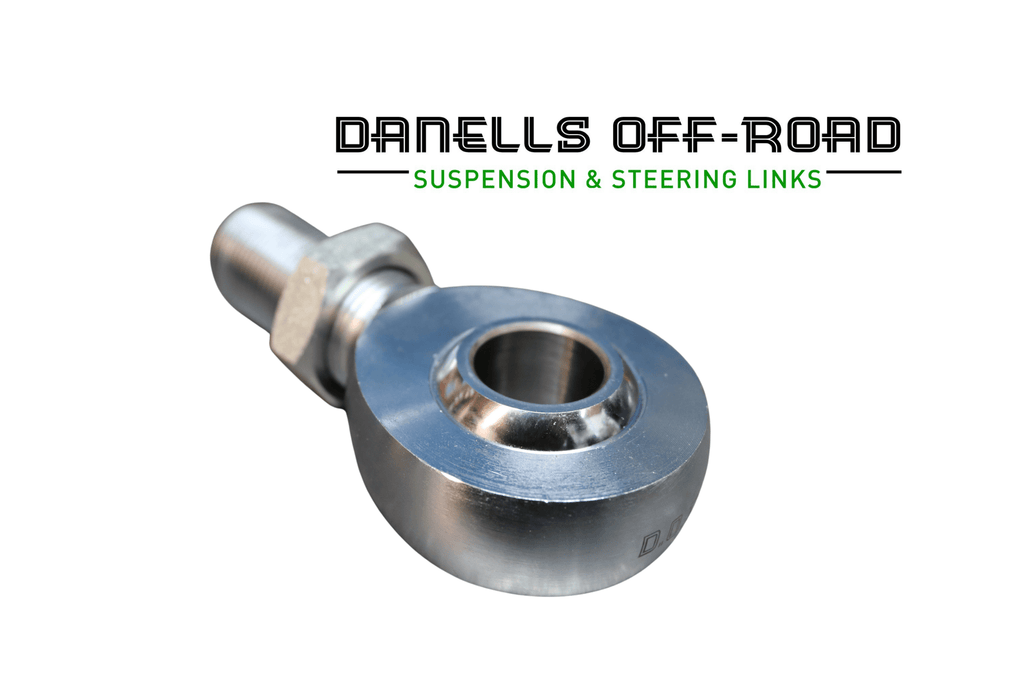

Heavy-duty right-hand threaded Heim joint (spherical rod end), supplied with a matching jam nut.
These rod ends are injection moulded PTFE reinforced Nylon, they are well suited for extreme off road applications such as Trailing arms and 4 link setups.
| Part number | XMR16 |
|---|---|
| Thread size | 1-1/4"–12 UNF |
| Thread direction | Right hand (RH) |
| Construction | 2-piece |
| Bearing lining | Injection-moulded PTFE-reinforced nylon |
| Supplied with | Matching jam nut (locknut) |
| Bore diameter (B) | 1" (approx. 25.40 mm) |
| Head outside diameter (D) | 2.75" (approx. 69.85 mm) |
| Ball width / bare mounting width (W) | 1.375" (approx. 34.93 mm) |
| Housing width (T) | 1" (approx. 25.40 mm) |
| Bore centre to shank end (AM) | 4.125" (approx. 104.78 mm) |
| Threaded shank length (CM) | 2.125" (approx. 53.98 mm) |
| Catalogue misalignment angle (α) | 17° (clevis mounted) |
| Catalogue static radial load | 76,200 lbf (approx. 339.0 kN) |
| Approximate joint weight | 2.41 lb (approx. 1093 g) |
| Body material | Heat-treated 4130 chromoly steel |
| Body finish | Hard chrome plated |
| Ball material | Heat-treated 52100 bearing steel |
| Ball finish | Precision ground, hard chrome plated |
| Lubrication | Self-lubricating |
High misalignment spacers can reduce the 1" bore to suit M16 or 3/4" bolts. With the appropriate spacer pair, the assembled mounting width is 2-5/8" (66.7 mm). The mounting width and bolt size depend on the spacers selected.
Sizing: Thread size refers to the threaded shank; check the joint bore and spacer requirements separately. RH and LH describe the thread direction.
Dimensions shown are nominal catalogue values. Bore and mounting width are for the bare joint; high misalignment spacers alter the bolt size, mounting width and available articulation. The static radial load is a manufacturer catalogue rating, not a working load limit.
