1” to 3/4” High Misalignment spacers
£15.00 GBP
Skip to product information
(DOR.039)
High Misalignment spacer reduces a 1 inch bore to a 3/4" inch bolt hole.
Installed mounting width of 2-5/8 inch (66.68mm).
Sold in Pairs, enough for 1 joint.
The material used is 17-4 PH stainless steel, which offers excellent corrosion resistance compared to plated mild steel. Additionally, this material provides increased toughness, helping to prevent elongation of the holes, ensuring durability and longevity.

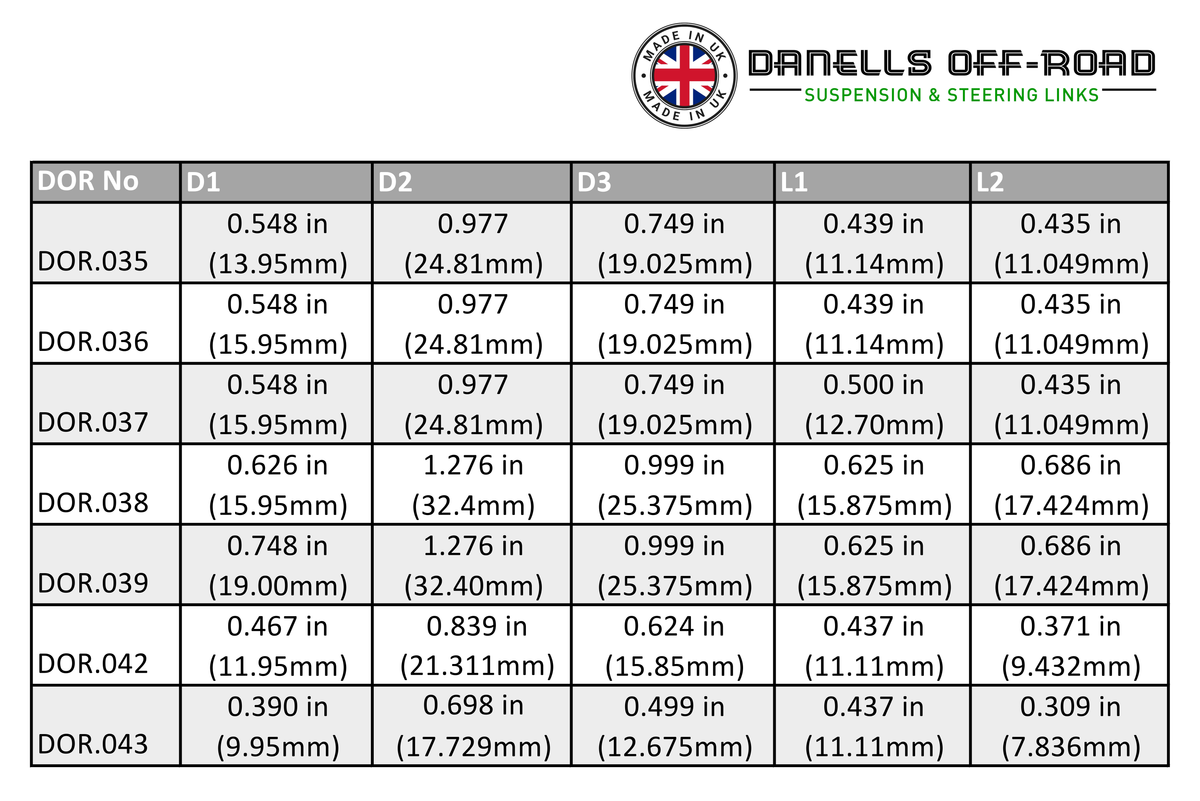

| Part number | DOR.10039 |
|---|---|
| Heim fitment | 1-1/4" |
| Nominal bolt size | 3/4" |
| Mounting width | 2-5/8" (66.68 mm) |

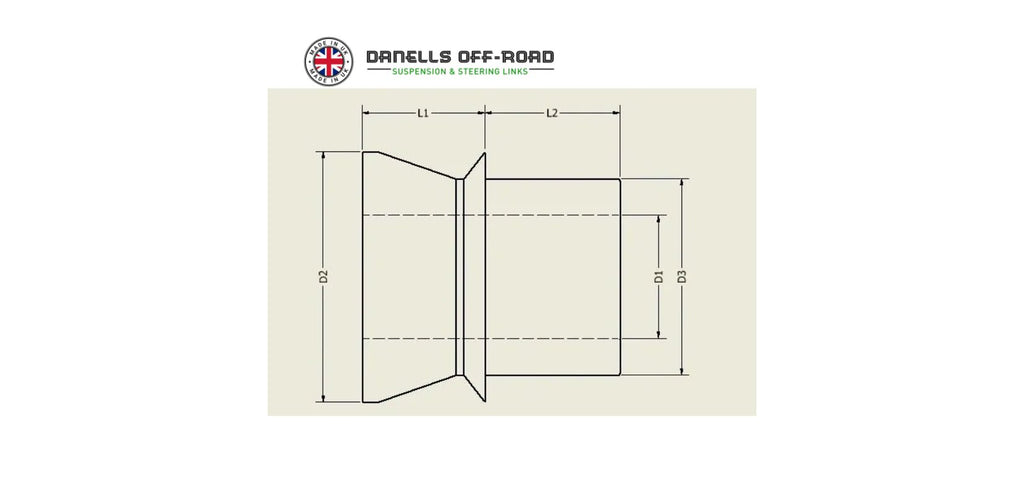

| D1 | 0.748 in (19.00 mm) |
| D2 | 1.276 in (32.40 mm) |
| D3 | 0.999 in (25.375 mm) |
| L1 | 0.625 in (15.875 mm) |
| L2 | 0.686 in (17.424 mm) |
