3/4" Heim Joint RH (HD)
£12.00 GBP
Skip to product information

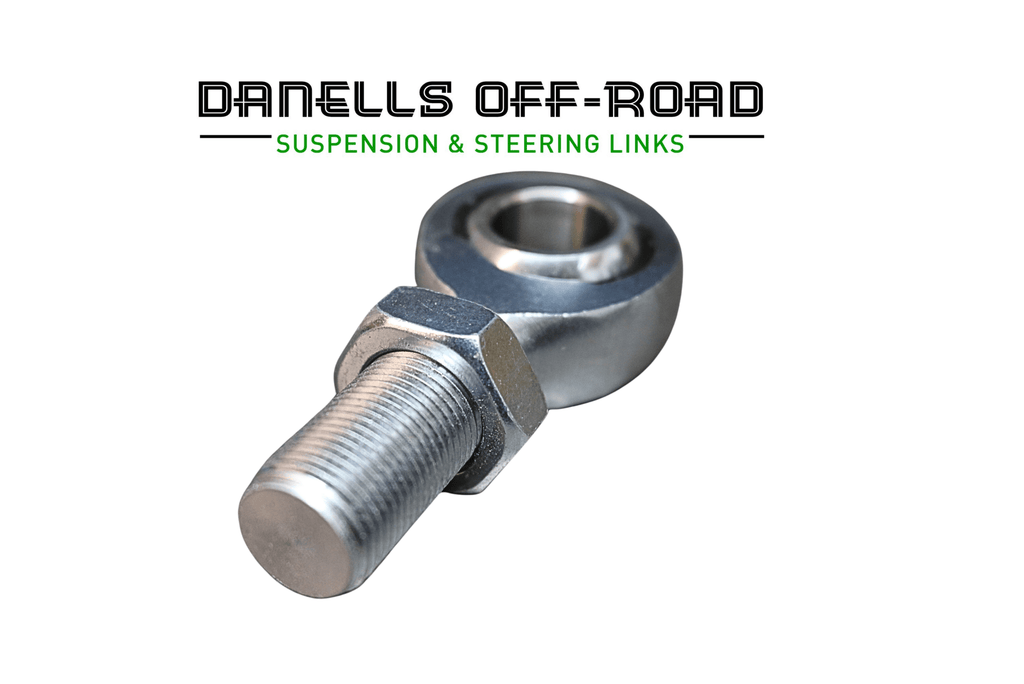

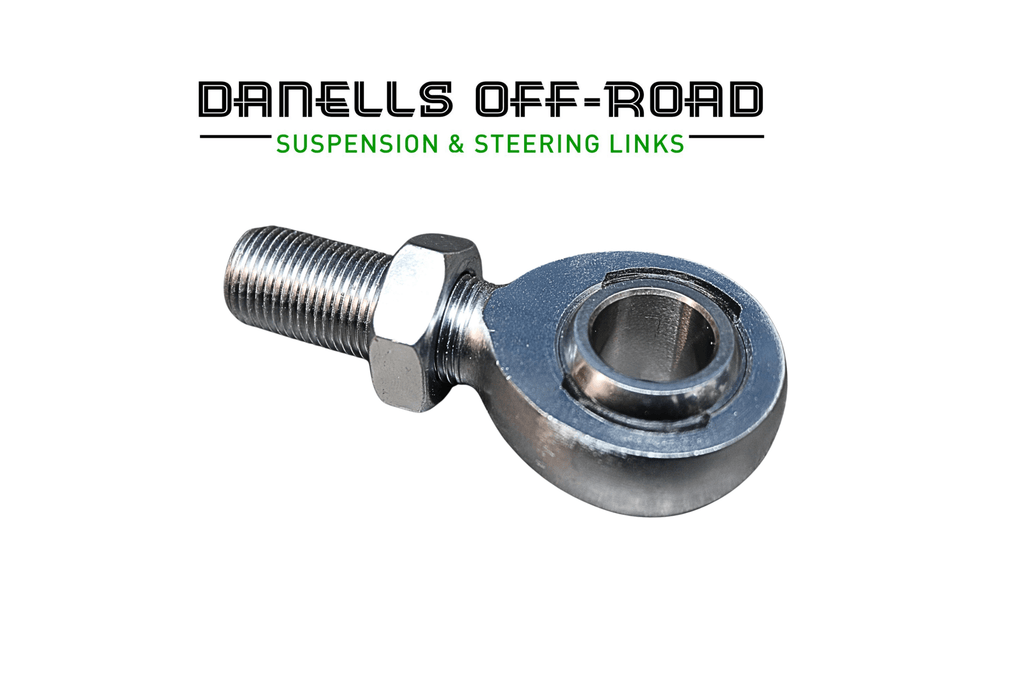

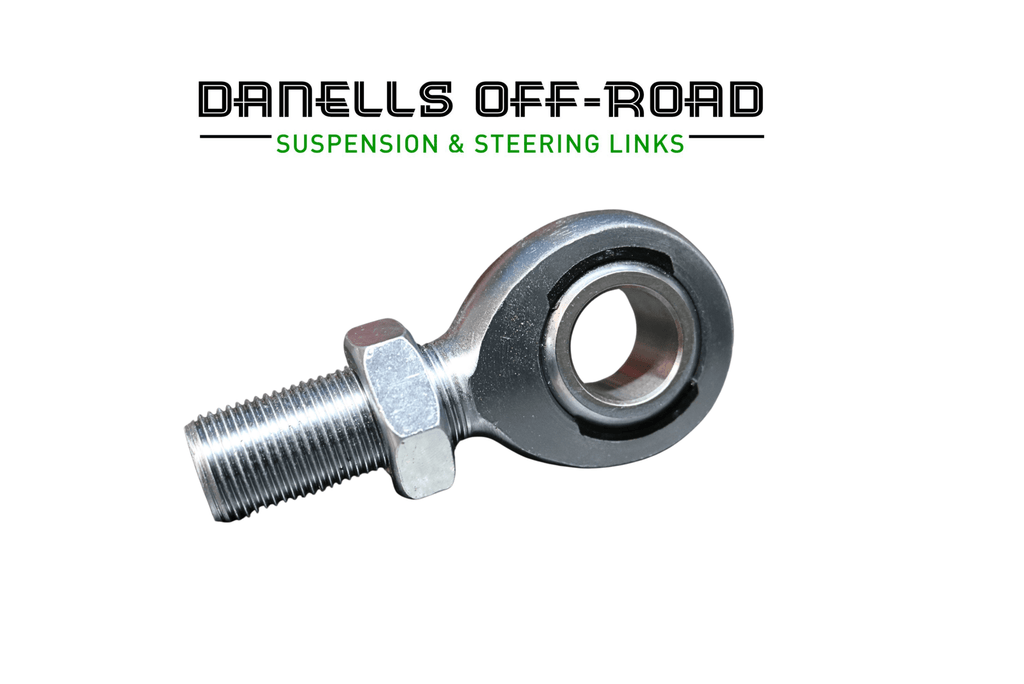

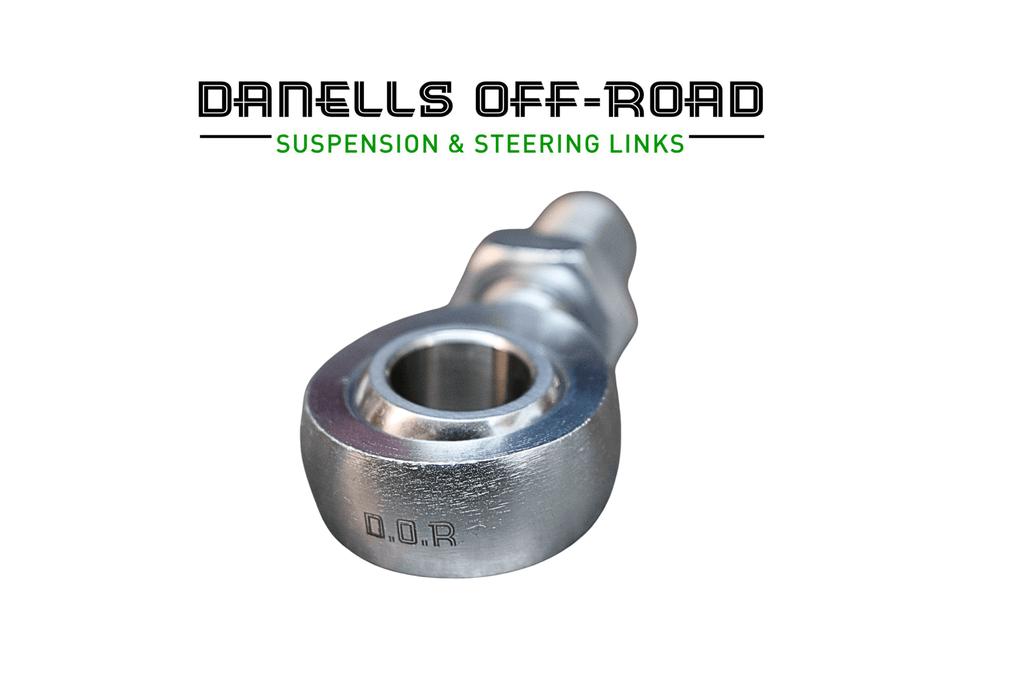

Heavy-duty right-hand threaded Heim joint (spherical rod end), supplied with a matching jam nut.
These rod ends are injection moulded PTFE reinforced Nylon, they are well suited for extreme off road applications such as hydro-steer and Panhard bars.
| Part number | XMR12 |
|---|---|
| Thread size | 3/4"–16 UNF |
| Thread direction | Right hand (RH) |
| Construction | 2-piece |
| Bearing lining | Injection-moulded PTFE-reinforced nylon |
| Supplied with | Matching jam nut (locknut) |
| Bore diameter (B) | 0.75" (approx. 19.05 mm) |
| Head outside diameter (D) | 1.75" (approx. 44.45 mm) |
| Ball width / bare mounting width (W) | 0.875" (approx. 22.23 mm) |
| Housing width (T) | 0.687" (approx. 17.45 mm) |
| Bore centre to shank end (AM) | 2.875" (approx. 73.03 mm) |
| Threaded shank length (CM) | 1.75" (approx. 44.45 mm) |
| Catalogue misalignment angle (α) | 14° (clevis mounted) |
| Catalogue static radial load | 28,081 lbf (approx. 124.9 kN) |
| Approximate joint weight | 0.57 lb (approx. 259 g) |
| Body material | Heat-treated 4130 chromoly steel |
| Body finish | Hard chrome plated |
| Ball material | Heat-treated 52100 bearing steel |
| Ball finish | Precision ground, hard chrome plated |
| Lubrication | Self-lubricating |
Sizing: Thread size refers to the threaded shank; check the joint bore and spacer requirements separately. RH and LH describe the thread direction.
Dimensions shown are nominal catalogue values. Bore and mounting width are for the bare joint; high misalignment spacers alter the bolt size, mounting width and available articulation. The static radial load is a manufacturer catalogue rating, not a working load limit.
