3/4" Kevlar Lined Heim Joint RH
£12.00 GBP
Skip to product information

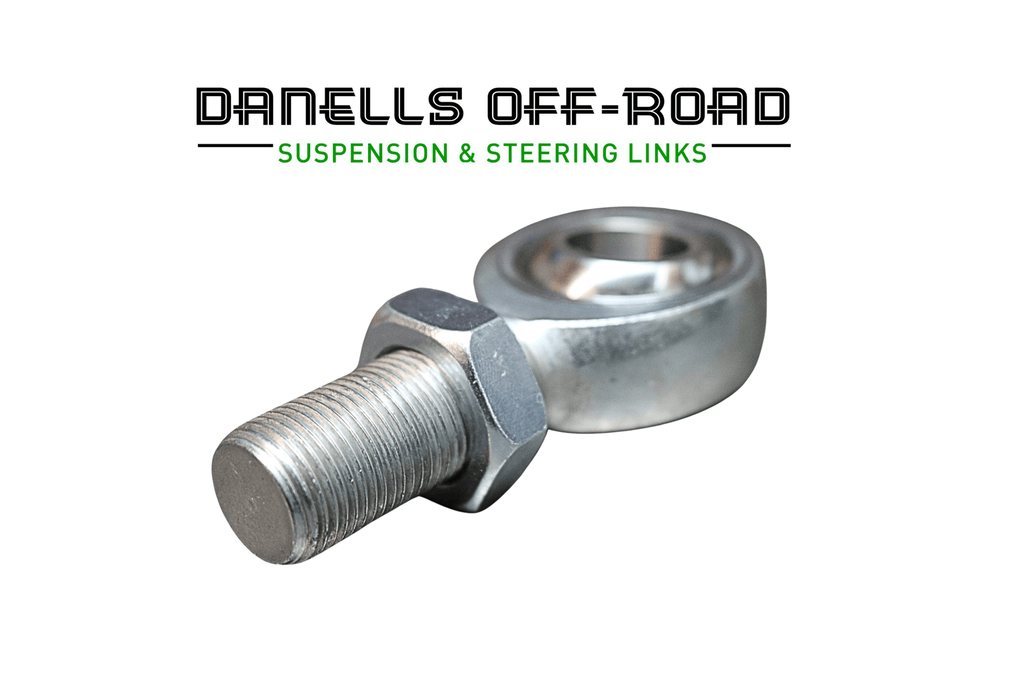

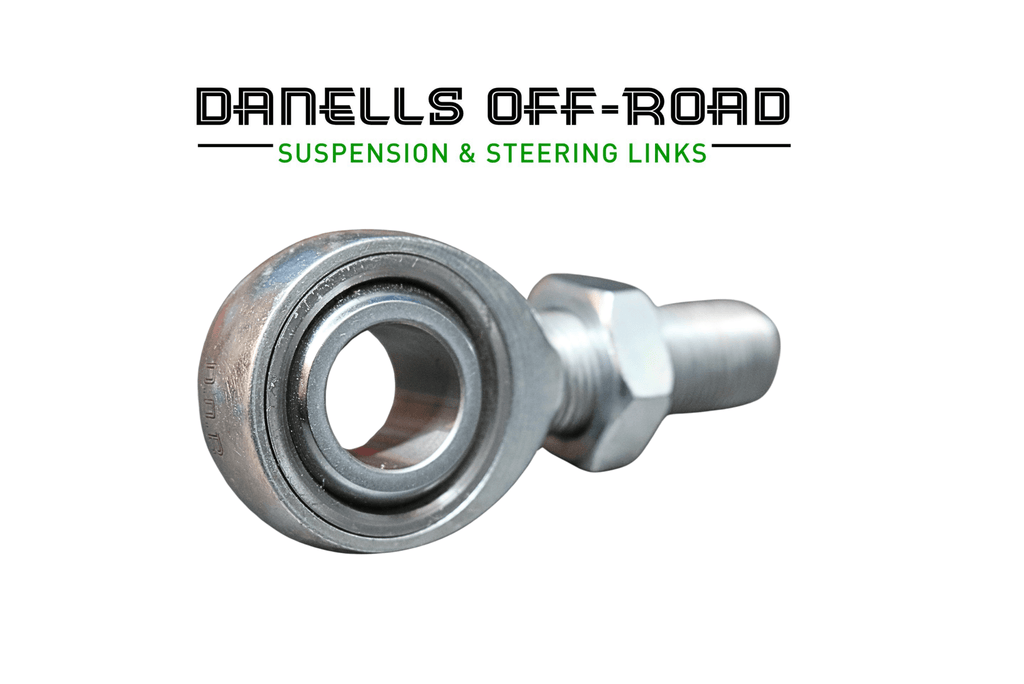

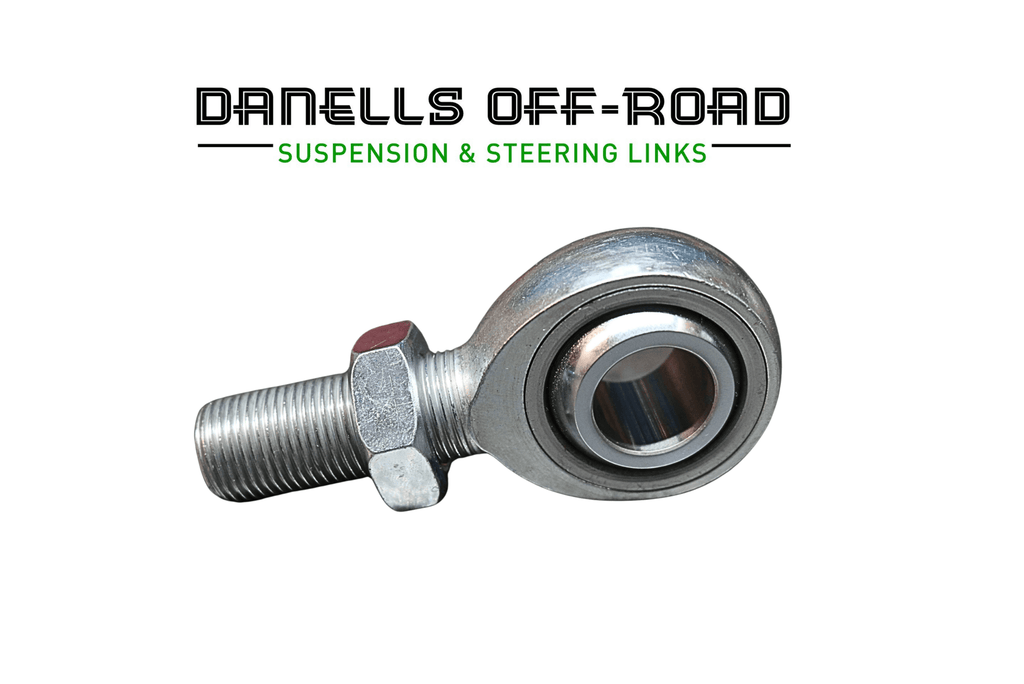

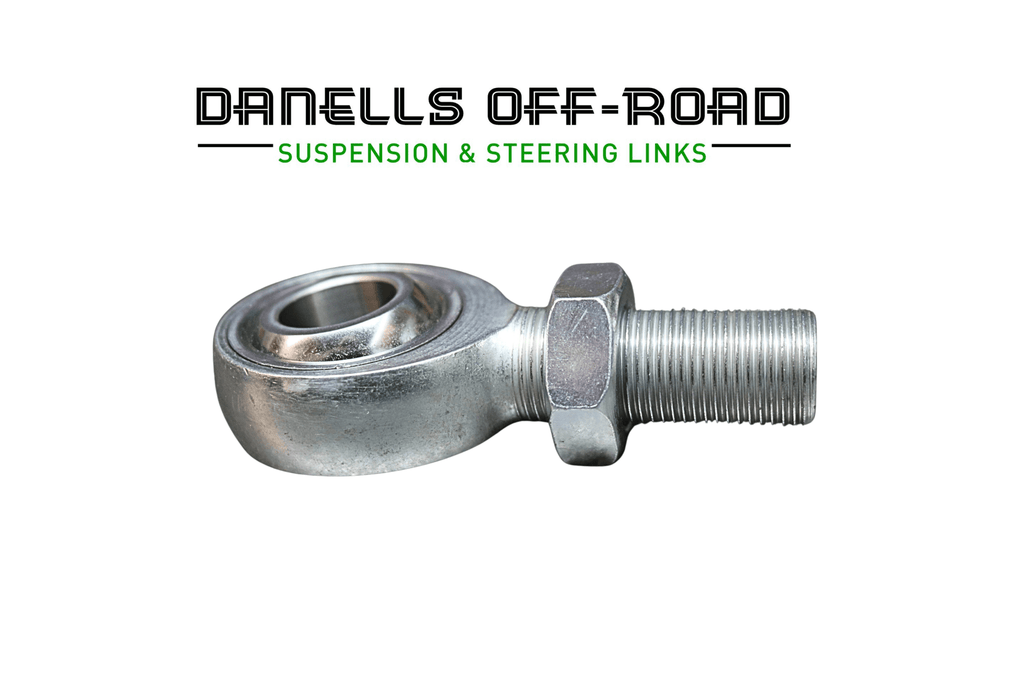

Custom Kevlar-lined right-hand threaded Heim joint (spherical rod end), supplied with a matching jam nut.
These joints use a custom Kevlar lining.
The Kevlar lining helps reduce unwanted noise when the joints get wet.
These are recommended for use with our Panhard bar kits, and come as standard when you purchase a kit.
| Part number | JMXR12(T) |
|---|---|
| Thread size | 3/4"–16 UNF |
| Thread direction | Right hand (RH) |
| Construction | 3-piece |
| Bearing lining | Custom Kevlar lining |
| Supplied with | Matching jam nut (locknut) |
| Bore diameter (B) | 0.75" (approx. 19.05 mm) |
| Head outside diameter (D) | 1.75" (approx. 44.45 mm) |
| Ball width / bare mounting width (W) | 0.875" (approx. 22.23 mm) |
| Housing width (T) | 0.687" (approx. 17.45 mm) |
| Bore centre to shank end (AM) | 2.875" (approx. 73.03 mm) |
| Threaded shank length (CM) | 1.75" (approx. 44.45 mm) |
| Catalogue misalignment angle (α) | 14° (clevis mounted) |
| Catalogue static radial load | 28,081 lbf (approx. 124.9 kN) |
| Approximate joint weight | 0.6 lb (approx. 272 g) |
| Body material | Heat-treated 4130 chromoly steel |
| Body finish | Silver zinc plated |
| Ball material | Heat-treated 52100 bearing steel |
| Ball finish | Precision ground, hard chrome plated |
Sizing: Thread size refers to the threaded shank; check the joint bore and spacer requirements separately. RH and LH describe the thread direction.
Dimensions shown are nominal catalogue values. Bore and mounting width are for the bare joint; high misalignment spacers alter the bolt size, mounting width and available articulation. The static radial load is a manufacturer catalogue rating, not a working load limit.
Dimensions shown are nominal catalogue values. Bore and mounting width are for the bare joint; high misalignment spacers alter the bolt size, mounting width and available articulation. The static radial load is a manufacturer catalogue rating, not a working load limit.
