5/8" Heim Joint LH (HD)
£10.00 GBP
Skip to product information

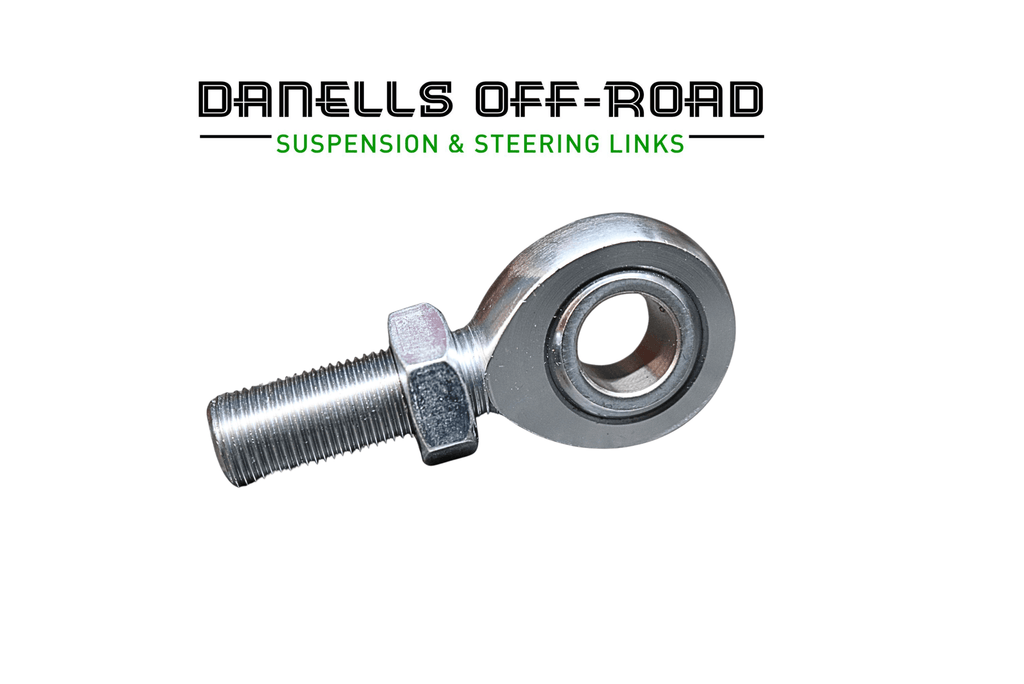

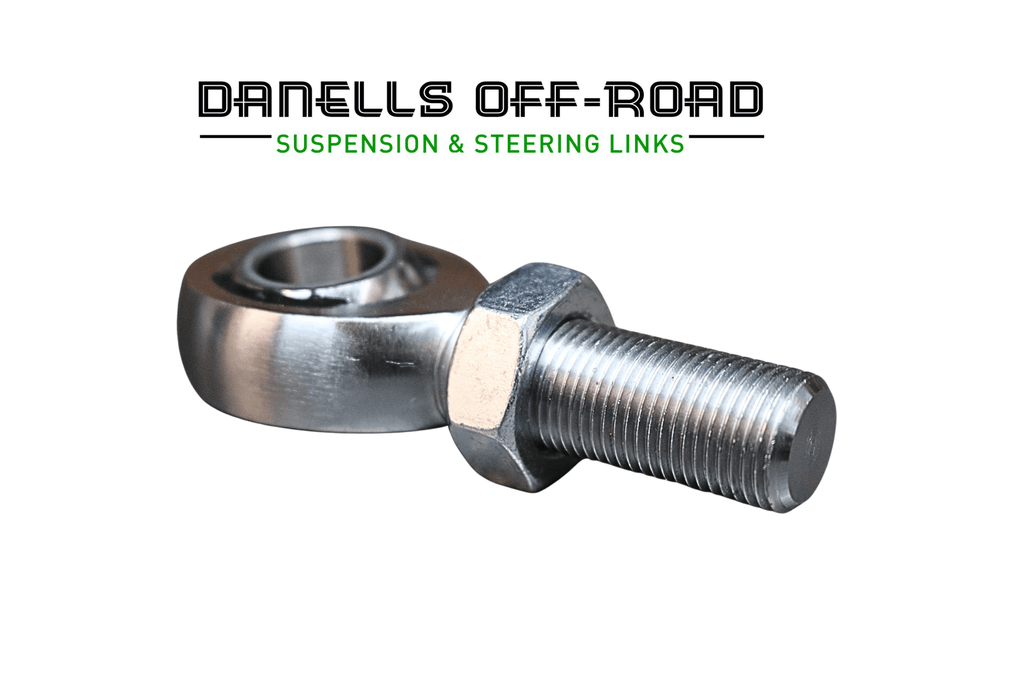

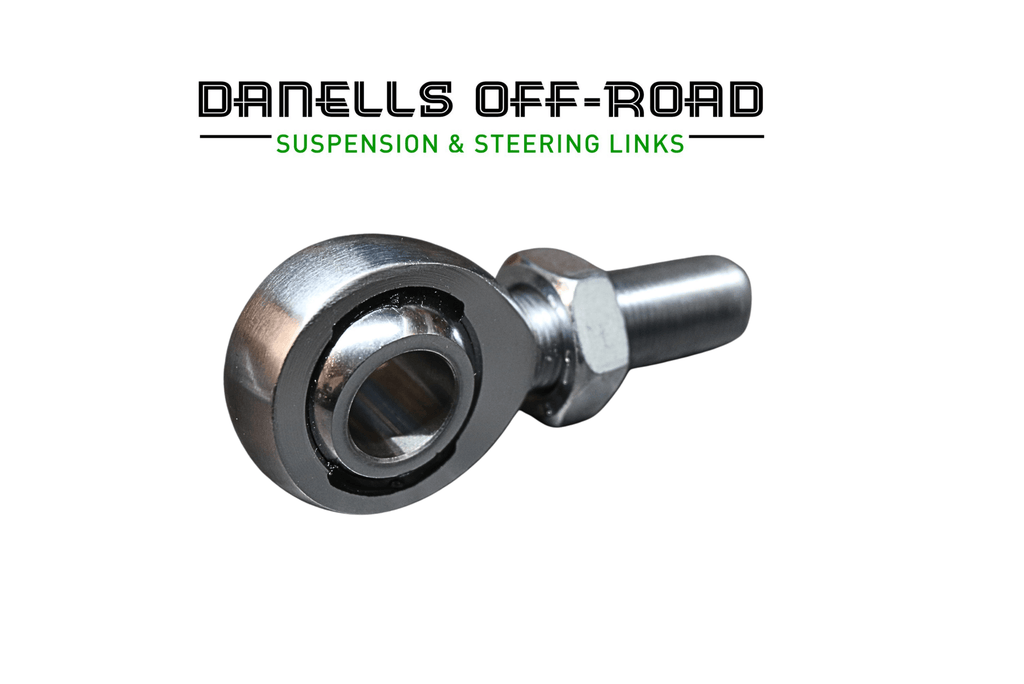

Heavy-duty left-hand threaded Heim joint (spherical rod end), supplied with a matching jam nut.
These rod ends are injection moulded PTFE reinforced Nylon, they are well suited for extreme off road applications such as Suzuki Jimny Panhard bars, Can-Am Radius rod links and sway bars.
| Part number | XML10 |
|---|---|
| Thread size | 5/8"–18 UNF |
| Thread direction | Left hand (LH) |
| Construction | 2-piece |
| Bearing lining | Injection-moulded PTFE-reinforced nylon |
| Supplied with | Matching jam nut (locknut) |
| Bore diameter (B) | 0.625" (approx. 15.88 mm) |
| Head outside diameter (D) | 1.5" (approx. 38.10 mm) |
| Ball width / bare mounting width (W) | 0.75" (approx. 19.05 mm) |
| Housing width (T) | 0.562" (approx. 14.27 mm) |
| Bore centre to shank end (AM) | 2.625" (approx. 66.68 mm) |
| Threaded shank length (CM) | 1.625" (approx. 41.28 mm) |
| Catalogue misalignment angle (α) | 16° (clevis mounted) |
| Catalogue static radial load | 17,955 lbf (approx. 79.9 kN) |
| Approximate joint weight | 0.36 lb (approx. 163 g) |
| Body material | Heat-treated 4130 chromoly steel |
| Body finish | Hard chrome plated |
| Ball material | Heat-treated 52100 bearing steel |
| Ball finish | Precision ground, hard chrome plated |
| Lubrication | Self-lubricating |
Sizing: Thread size refers to the threaded shank; check the joint bore and spacer requirements separately. RH and LH describe the thread direction.
Dimensions shown are nominal catalogue values. Bore and mounting width are for the bare joint; high misalignment spacers alter the bolt size, mounting width and available articulation. The static radial load is a manufacturer catalogue rating, not a working load limit.
Dimensions shown are nominal catalogue values. Bore and mounting width are for the bare joint; high misalignment spacers alter the bolt size, mounting width and available articulation. The static radial load is a manufacturer catalogue rating, not a working load limit.
