M24 x 2 HD Heim Joint RH
£28.00 GBP
Skip to product information

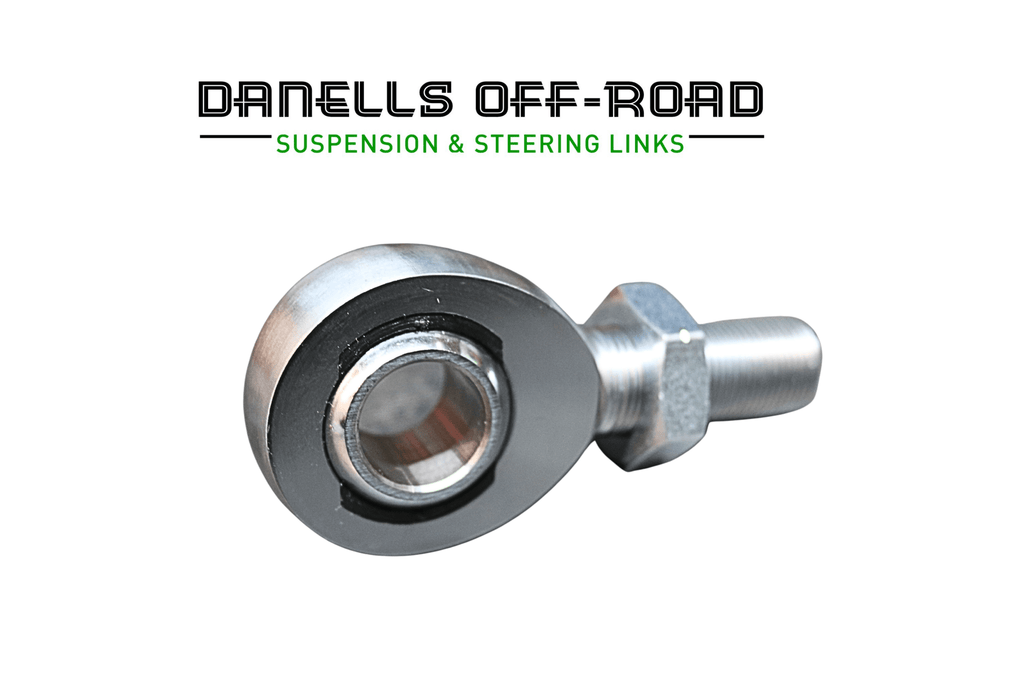

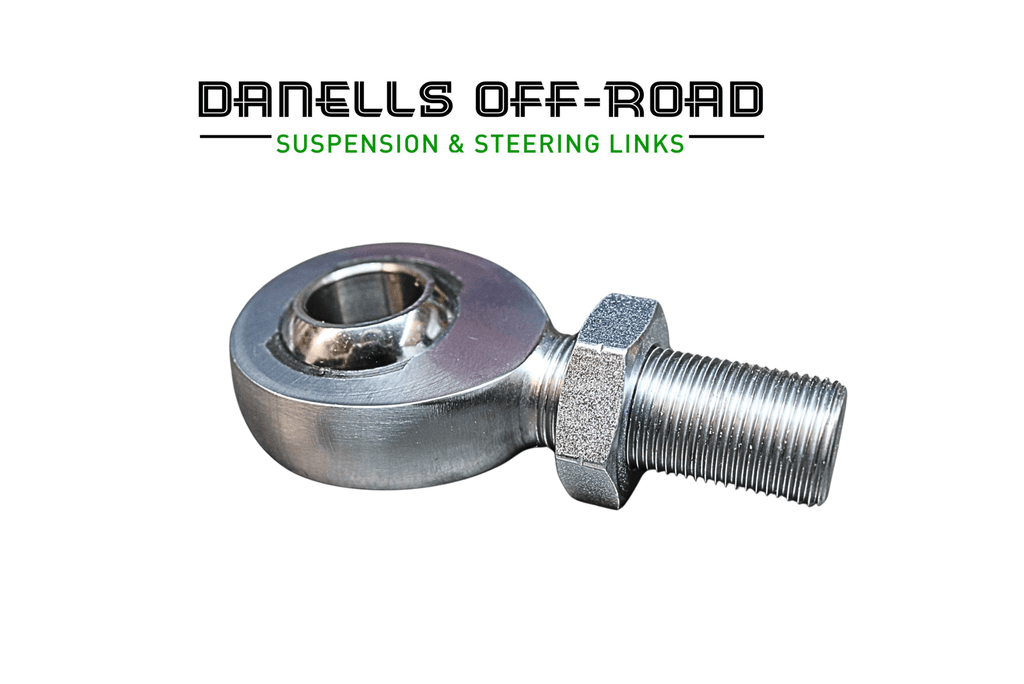

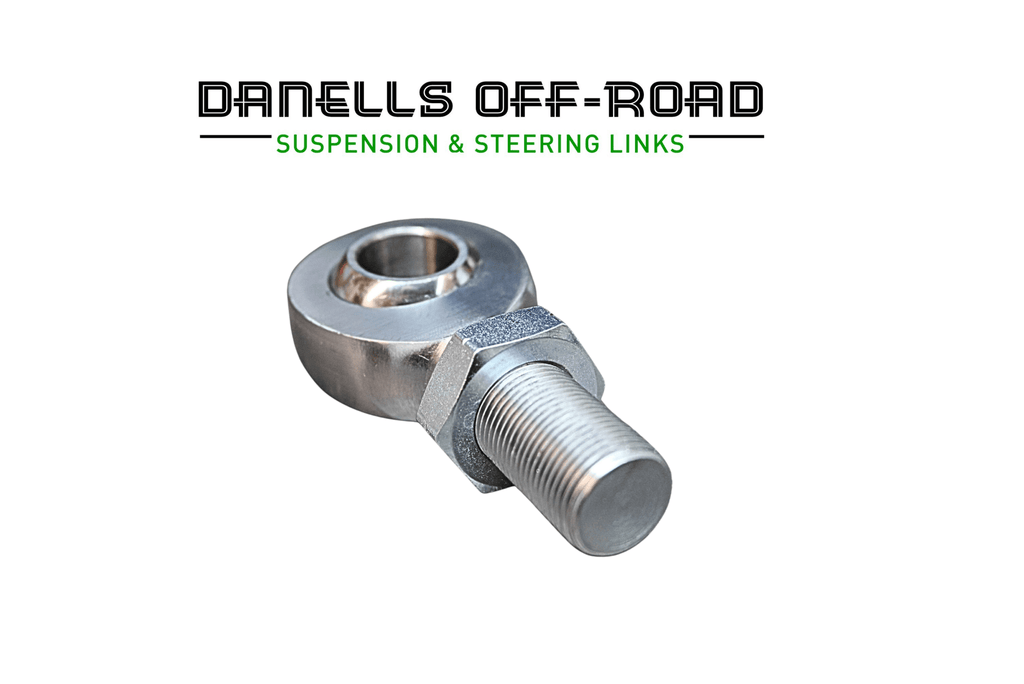

Heavy-duty right-hand threaded Heim joint (spherical rod end), supplied with a matching jam nut.
These rod ends are injection moulded PTFE reinforced Nylon, they are well suited for extreme off road applications such as Trailing arms and 4 link setups.
| Part number | MXMR25 |
|---|---|
| Thread size | M24 × 2 |
| Thread direction | Right hand (RH) |
| Construction | 2-piece |
| Bearing lining | Injection-moulded PTFE-reinforced nylon |
| Supplied with | Matching jam nut (locknut) |
| Bore diameter (B) | 25 mm |
| Head outside diameter (D) | 60 mm |
| Ball width / bare mounting width (W) | 31 mm |
| Housing width (T) | 22 mm |
| Bore centre to shank end (AM) | 94 mm |
| Threaded shank length (CM) | 55 mm |
| Catalogue misalignment angle (α) | 28° (clevis mounted) |
| Catalogue static radial load | 153 kN |
| Approximate joint weight | 340 g |
| Body material | Heat-treated 4130 chromoly steel |
| Body finish | Hard chrome plated |
| Ball material | Heat-treated 52100 bearing steel |
| Ball finish | Precision ground, hard chrome plated |
| Lubrication | Self-lubricating |
Sizing: Thread size refers to the threaded shank; check the joint bore and spacer requirements separately. RH and LH describe the thread direction.
Dimensions shown are nominal catalogue values. Bore and mounting width are for the bare joint; high misalignment spacers alter the bolt size, mounting width and available articulation. The static radial load is a manufacturer catalogue rating, not a working load limit.
