Suzuki Jimny Front Panhard Bar
Bar Only
£75.00 GBP
Skip to product information
Currently out of stock
Select the ‘Notify Me’ button to receive an email when this item is back in stock.

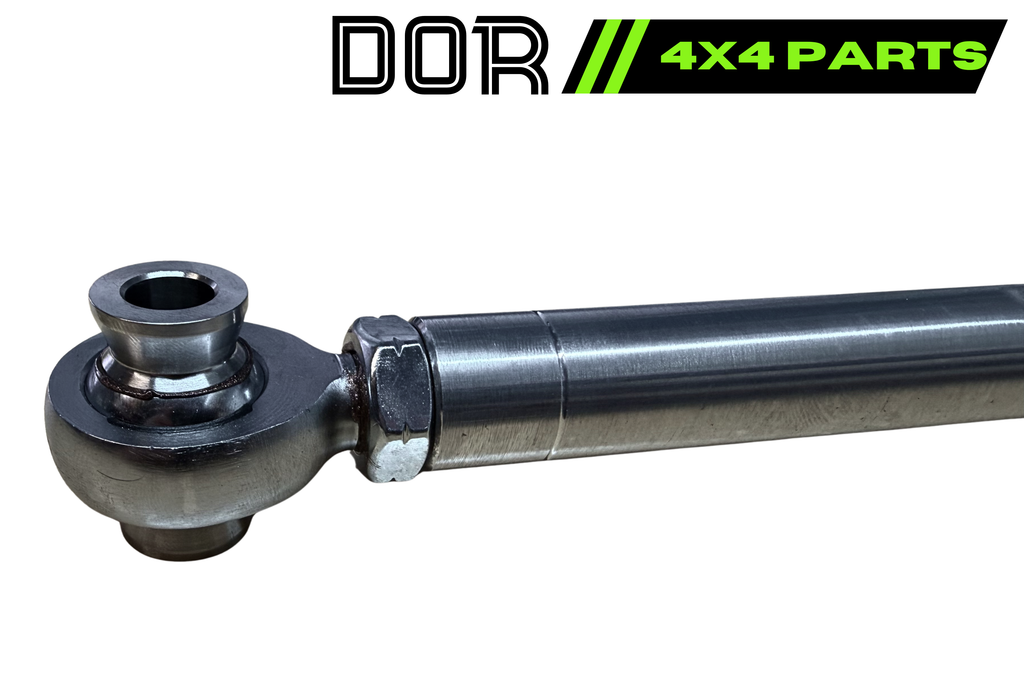

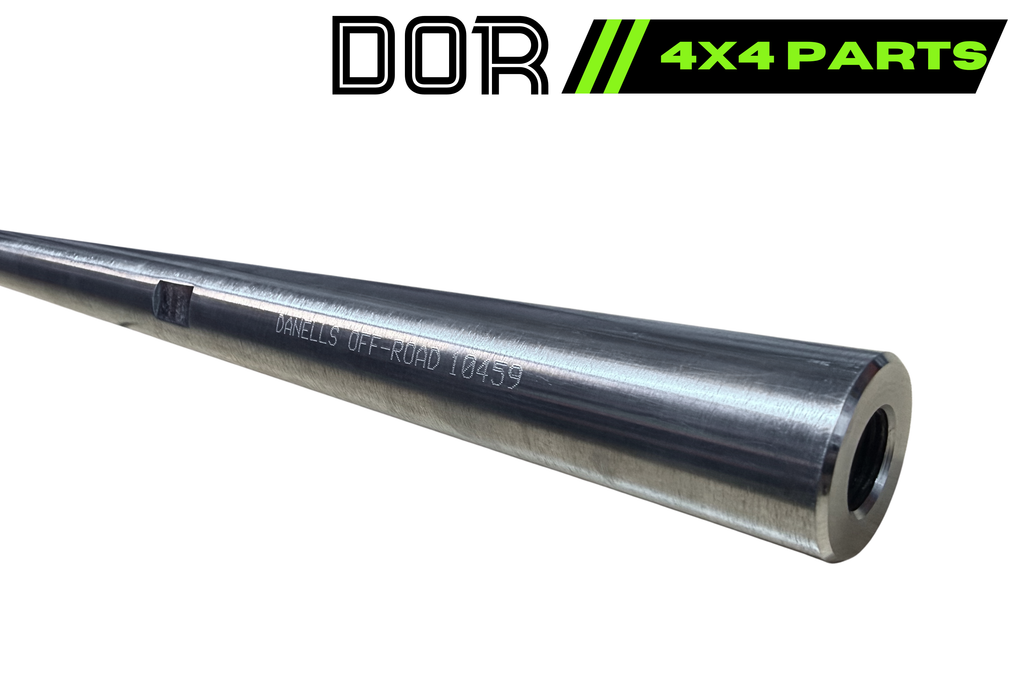

This replacement Panhard bar is designed for the Suzuki Jimny front axle. It is manufactured from billet 7075-T6 aluminium and features a 1" (25.4mm) diameter, providing durability and strength while being slim enough to fit in the OEM location.
Our Panhard bar includes spanner flats for easy adjustment and incorporates a left-hand thread marked by an identification groove, as well as a right-hand thread to accommodate 5/8" UNF Heim joints.
Performance & Benefits: Adjustable design allows the axle to be re-centred after a suspension lift. Enhanced rigidity with Heim joints over standard bushings for improved performance.
Unlike many Panhard bars made from steel, our bars are engineered for extreme off-road conditions.
In the Options you can choose to purchase the Panhard bar on its own or as a kit.
Our Jimny Panhard Bar kit includes the following items:
x 1 Panhard bar
x 1 Right-hand 5/8" HD Heim joint with jam nut
x 1 Left-hand 5/8" HD Heim joint with jam nut
x 2 Pairs of 5/8" to M12 Stainless Steel misalignment spacers
Our Panhard bars are pre-greased.
